How to export a Kili project

Outline

This tutorial explains the multiple ways to export a Kili project. It describes a per-label method involving label filtering and conversion, and also the solutions performing a full-project export. The methods are illustrated with code snippets.

Export methods

With Kili, once you have annotated enough assets, you can export the data programmatically to train a machine learning algorithm with it. There are several ways to do it:

Fetch the assets and/or the labels one by one using .assets or .labels, perform the data transformation yourself, then write the data to one or several output files.
Export the whole project as a dataset. To do that, use the .export_labels method that creates an archive containing the labels in your chosen format.

Preliminary steps

Fetch the project ID from the Kili UI (in Settings / Admin):
Ensure that your Kili API key as been set as an environment variable:
```
export KILI_API_KEY=<YOUR_API_KEY>
```
Install Kili if it has not been done already.
```
pip install --upgrade kili
```

Import packages and instantiate Kili:

from kili.client import Kili
from pathlib import Path
kili = Kili()

Exporting assets and labels one by one

To retrieve all assets of a project one by one, perform the following steps:

Exporting the latest labels per asset

First, fetch the assets:

assets = kili.assets("<your_project_id>", fields=["externalId", "latestLabel.jsonResponse"])

Now if you print an asset, you will see that you can access its latestLabel:

print(assets[0])
{'latestLabel': {'jsonResponse': {'CLASSIFICATION_JOB': {'categories': [{'name': 'VEHICLE'}]}}}, 'externalId': '0'}

You can now get your label this way, and for example write the category name into a 0.txt file:

for asset in assets:
    if asset["latestLabel"]: # covers the assets without label
        class_ = asset["latestLabel"]["jsonResponse"]["CLASSIFICATION_JOB"]["categories"][0]["name"]
        with (Path("/tmp") / (asset["externalId"] + ".txt")).open("w", encoding="utf-8") as f:
            f.write(class_)

Filtering specific labels per asset through the method filters

You can specify label filters directly in the .assets and the .labels methods. The available filters are listed in the arguments of these methods.

When done, you can write the conversion code to obtain the data in the format that you need.

Get only the assets that have labels with a consensus mark above 0.7

assets = kili.assets("<your_project_id>", fields=["externalId", "labels.jsonResponse"], label_consensus_mark_gt=0.7)
# + asset conversion code

Get all the labels with a consensus mark above 0.7

labels = kili.labels("<your_project_id>", fields=["labelOf.externalId", "jsonResponse"], consensus_mark_gt=0.7)
# + label conversion code

Get all the labels done by a specific project member

labels = kili.labels("<your_project_id>", fields=["labelOf.externalId", "jsonResponse"], author_in=["John Smith"])
# + label conversion code

will directly return a list of labels authored by John Smith. In the author_in , you can also pass the first name, the last name, or the first name + last name of the user for which you want to fetch the labels.

Filtering specific labels per asset through the label properties

You can also look for specific labels, for example the last "review" status label per user, and dump the result into a json file. You can use the field "labels.isLatestReviewLabelForUser" to check if the label is the latest per user.

from kili.client import Kili
from pathlib import Path
import json

assets = kili.assets("<your_project_id>", fields=["externalId", "labels.jsonResponse", "labels.isLatestReviewLabelForUser"])

for asset in assets:
    if asset["labels"]: # covers the assets without annotations
        for label in asset["labels"]:
            if label["isLatestReviewLabelForUser"] and "JOB_0" in label["jsonResponse"]:
                annotation = label["jsonResponse"]["JOB_0"]
                with (Path("/tmp") / (asset["externalId"] + ".json")).open("w", encoding="utf-8") as f:
                    f.write(json.dumps(annotation))
                break # once we find a latest label done by a reviewer, we move on to the next asset.

Filtering the latest label per annotator

When working on project with consensus enabled, it can be useful to export the latest label made by each annotator:

from kili.client import Kili
from collections import defaultdict
from pathlib import Path
import json


kili = Kili()
assets = kili.assets(
    "clb54wfkn01zb0kyadscgaf5j",
    fields=[
        "externalId",
        "labels.author.email",
        "labels.createdAt",
        "labels.labelType",
        "labels.jsonResponse",
    ],
)

for asset in assets:
    if asset["labels"]:
        latest_label_by_user = defaultdict(list)
        for label in asset["labels"]:
            if label["labelType"] == "DEFAULT":
                latest_label_by_user[label["author"]["email"]].append(label)
        latest_label_per_user = {
            email: max(labels, key=lambda x: x["createdAt"])
            for email, labels in latest_label_by_user.items()
        }
        with (Path("/tmp") / (asset["externalId"] + ".json")).open("w", encoding="utf-8") as f:
            f.write(json.dumps(latest_label_per_user))

Exporting a whole project

There is also a method to export the whole project into specific export formats. It can be useful when your goal is to use one of the standard output formats.

Available formats

Format	UI	Python Client	Command Line Interface
Kili (raw)	✅	✅	✅
Kili (simple)	✅	❌	❌
YOLO V4	✅	✅	✅
YOLO V5	✅	✅	✅
YOLO V7	❌	✅	✅
Pascal VOC	✅	✅	✅
COCO	❌	✅	✅

The `.export_labels` method

The .export_labels method enables the export of a full project. It does the following preprocessing:

Only fetches the labels of types "DEFAULT" and "REVIEW" (see the label types explanations).
If specified, selects a subset of asset ids.
Exports labels to one of the standard formats (only available for a restricted set of ML tasks).
The with_assets argument lets you decide if you want to include the assets in the export.
The export_type argument tells if the latest label or all the labels are exported.
The split_option argument tells if the export contains one folder for all the jobs, or one folder per job.
The single_file argument tells if the labels data should be exported into one single file. Note that some formats are single file or multiple files only:
- Kili: single file or multiple files.
- YOLO: multiple files only.
- Pascal VOC: multiple files only.
- COCO: single-file only.

For all the formats, in the output archive, a README.kili.txt file is also created. Here is an example of its contents:

Exported Labels from KILI
=========================

- Project name: Awesome annotation project
- Project identifier: abcdefghijklmnop
- Project description: This project contains labels, most of which are awesome.
- Export date: 20221125-093324
- Exported format: kili
- Exported labels: latest

Kili format, one file per asset

The following code snippet exports all the assets payloads and the associated labels, with one json file per asset, into the /tmp/export.zip folder.

from kili.client import Kili
kili = Kili()
kili.export_labels(
    project_id = "<your_project_id>",
    filename = "/tmp/export.zip",
    fmt = "kili",
)

Kili format, one file for the whole project

This code snippet exports the assets payloads and the associated labels in one file for the whole project, into the /tmp/export.zip folder.

from kili.client import Kili
kili = Kili()
kili.export_labels(
    project_id = "<your_project_id>",
    filename = "/tmp/export.zip",
    fmt = "kili",
    single_file = True,
)

YOLO formats

You can also export to on of the YOLO format, when you have at least one Object Detection job with bounding boxes. You can choose the "yolo_v4", "yolo_v5" or "yolo_v7". The difference between each format is the structure of the metadata YAML file, which specifies the object classes. In all the cases, it produces one file per asset in the Yolo format, containing the last DEFAULT or REVIEW label that has been produced. Each YOLO label has the following shape:

2        0.25 0.67 0.26 0.34
^        ^    ^    ^    ^
class    x    y    w    h

where:

class is the class index in the classes list contained in the YOLO metadata file.
x is the x-coordinate relative to the image width (between 0.0 and 1.0) of the center of the bounding box.
y is the y-coordinate relative to the image height (between 0.0 and 1.0) of the center of the bounding box.
w is the width relative to the image width (between 0.0 and 1.0) of the bounding box.
h is the height relative to the image height (between 0.0 and 1.0) of the bounding box.

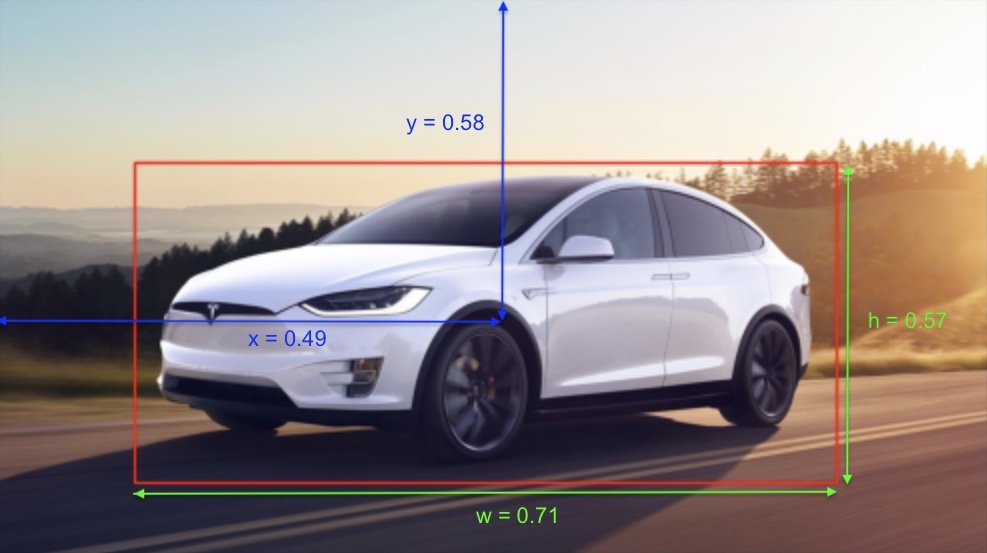

Here is an example of a YOLO annotation over an image:
yolo on an image

Here is how to export to YOLO (in this example, YOLOv5):

from kili.client import Kili
kili = Kili()
kili.export_labels(
    project_id = "<your_project_id>",
    filename = "/tmp/export.zip",
    fmt = "yolo_v5",
)

Please note that a standard YOLO file format must also include the path root to the assets, and also the train, val and test subfolders. Since this is up to the ML engineer or Data scientist to know which data goes where, we do not provide this layout.

COCO format

To export your data into the COCO format, run the following code:

from kili.client import Kili
kili = Kili()
kili.export_labels(
    project_id = "<your_project_id>",
    filename = "/tmp/export.zip",
    fmt = "coco",
)

This will create an archive containing both:

The COCO annotation file.
A folder data/ with all the assets.

Summary

In this tutorial, we have seen several ways to export labels from a Kili project:

Using .assets and .labels and their filtering arguments, a subset of assets or labels can be selected and then exported.
Using .export_labels, the whole project can be exported into a standard output format.
